P25 Networks

TB9100

Modular P25 Architecture with IP Connectivity

Design of this Base Station, powered by Tait, includes industry-standard interfaces and modular expansion options for a cost-effective solution. The TB9100 is fully P25 compliant and can be configured as a repeater or as a base station in a digital P25, analog FM or mixed-mode radio network.

IP connectivity delivers advanced capabilities for remote diagnostics, performance analysis and alarm and alert configuration.

• Ideal solution for conventional, trunked and simulcast mission-critical networks
• Intuitive software programming for fast customization, configuration and upgrades
• Flexible design adapts to growing user needs
• Advanced capacity and interoperability with adherence to P25 standards
• IP connectivity for enhanced remote management and monitoring capabilities

Systems Supported

P25 Conventional/Trunked, Analog FM, Mixed-Mode

Frequency Range

VHF: 136-174 MHz  |  UHF: 380-520 MHz  |  700/800: 762-870 MHz

Dimensions

Subrack: 7 x 19 x 15.2 in (177.8 x 482.6 x 386 mm)

Weight

Single 5/50 W: 47.0 lb (21.5 kg)
Dual 100 W: 50.2 lb (22.8 kg)

TB9100 Spec Sheet

Contact us for more information on the Tait TB9100

TB9400

Flexible, Efficient P25 and Analog Networking

The Tait TB9400 Base Station is a reliable, scalable open-standards-based P25 migration solution. This interoperable base station/repeater has multimode functionality providing analog simulcast over IP, P25 Phase 1, and P25 Phase 2.

With a modular design as well as remote management and monitoring options, the TB9400 is an efficient, cost-effective solution that can adapt and grow with an organization's P25 radio system. The integrated software voter and simulcast controller reduces the need for additional hardware and saves rack space.

• Operation in VHF, UHF and 700/800 MHz frequency bands
• Ensures a smooth migration from Analog to Digital with multimode functionality
• Scalable, open-standard P25 migration solution ensures interoperability with other agencies
• Secure, remote management and monitoring options
• Designed and tested for resilience and reliability to mitigate network outages

Systems Supported

P25 Phase 1, P25 Phase 2, Analog Simulcast over IP

Frequency Range

VHF: 136-174 MHz  |  UHF: 400-440, 440-480 MHz  |  700/800: 762-776, 850-870 MHz

Dimensions

19 x 7 x 15.8 in (483 x 177 x 400 mm)

Weight

Single 50 W: 43.2 lb (19.6 kg)
Single 100 W: 46.5 lb (21.1 kg)
Dual 50 W: 57.7 lb (24.8 kg)

TB9400 Spec Sheet

Contact us for more information on the Tait TB9400

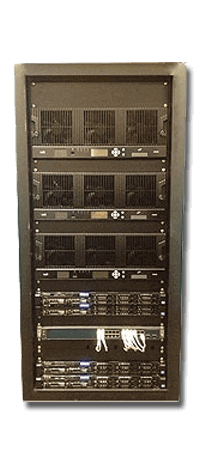

TN9400

Reliable P25 Emergency Services Communications

Engineered with multiple levels of redundancy, the TN9400 ensures continuous mission-critical communications through highly available server clusters, site trunking and failsoft.

Using web-based management tools, organizations can maximize efficiencies with remote fleet monitoring, network configuration and system upgrades. End-to-end encryption is built in for secure transmissions. This P25 solution also supports worker safety through capabilities for multiple call types, radio alerts, text messaging and status updates.

• IP-based for flexible network design and future expansion
• Provides interoperability through multiple operating modes — P25 trunking Phase 1 and Phase 2
• Reliable communications supported through multiple levels of redundancy
• Remote web-based network tools increase operational efficiencies
• Multiple call types, alerts and status updates enhance workforce safety

Systems Supported

P25 Trunking Phase 1 & Phase 2

TN9400 Spec Sheet

Contact us for more information on the Tait TN9400
