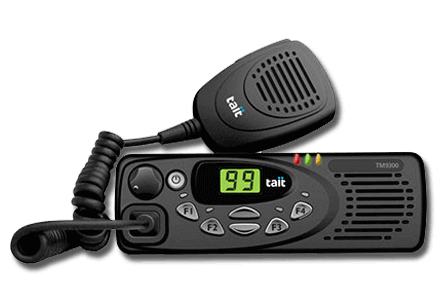

TM9300

Rugged, Multi-Mode DMR for Public Safety and Professional Communicators

Tait TM9300 mobiles are engineered to deliver critical communications using the Digital Mobile Radio (DMR) standards for workers in demanding occupations, including utilities, mining, transport and oil and gas industries.

With clear audio and GPS location capabilities, the TM9300 increases communications clarity while keeping operators tracked and connected. Ruggedized to withstand extreme conditions, the radios have a tough, die-cast metal chassis with an IP54-rated casing to protect from dust and water.

The TM9300 has a range of control heads, including a Handheld Control Head or a Graphical Control Head (single or dual), each capable of local or remote operation, with multiple color options to make it easier for workgroups to identify the right equipment.

• Supports analog FM, MPT 1327, DMR Tier 2 (conventional) and DMR Tier 3 (trunked) for ease of migration
• Rugged design for demanding environments with IP54 rating
• Increased efficiency with data communications and location services
• End-to-end encryption for secure communications
• Improved workforce safety with integrated Lone Worker and GPS capability

Systems Supported

DMR Tier 2, DMR Tier 3, MPT 1327, Analog FM

Frequency Range

VHF: 136-174, 174-225 MHz  |  UHF: 320-380, 378-470, 400-470, 450-520 MHz  |  700/800: 757-870 MHz  |  900: 896-941 MHz

Dimensions

Radio Body (25 W): 2.1 x 6.3 x 6.9 in (52 x 160 x 175 mm)
Graphical Control Head: 2.8 x 7.24 x 1.38 in (71 x 184 x 35 mm)

Weight

Radio Body (25 W): 2.6 lb (1.2 kg)
Control Head: 0.73 lb (0.33 kg)

TM9315 Spec Sheet

Contact us for more information on the Tait TM9300

TM9400

Efficient, Reliable, Secure Public Safety Radio

Tait TM9400 mobiles are high-performing, flexible and robust radios, designed for intuitive operation in challenging environments around the world.

This P25-compliant mobile radio eases migration to more spectrally efficient communications with multiple modes of operation, including analog, analog simulcast IP, 12.5 kHz P25 Phase 1 FDMA conventional/trunked, P25 Phase 2 TDMA trunked and LSM (CQPSK) decode capability.

The TM9400 has a range of control heads, including a Handheld Control Head or a Graphical Control Head (single or dual), each capable of local or remote operation, with multiple color options to make it easier for workgroups to identify the right equipment.

• Reduced migration risk with multiple modes of operation
• Adheres to P25 standards supporting multi-vendor interoperability
• Rugged design with IP54 rating and water-resistant control head
• AES encryption for secure communications

Systems Supported

P25 Phase 1 & Phase 2, Analog Conventional, Analog Simulcast over IP, LSM (CQPSK)

Frequency Range

VHF: 136-174 MHz  |  UHF: 400-470, 450-520 MHz  |  700/800: 762-870 MHz

Dimensions

Control Head: 1.38 x 7.24 x 2.8 in (35 x 184 x 71 mm)
Radio Body (25 W): 6.9 x 6.3 x 2.1 in (175 x 160 x 52 mm)

Weight

Control Head: 0.73 lb (0.33 kg)
Radio Body (25 W): 2.6 lb (1.2 kg)

TM9455 Spec Sheet

Contact us for more information on the Tait TM9400
