TB7300

Compact, Rugged DMR Base Station/Repeater

The TB7300 seamlessly integrates with the Tait 9300 series Base Station. Working as an IP-node, the system supports multi-site networking and a simplified migration path between DMR Tier 3 trunked networks and conventional Tier 2 applications.

The Slimline DMR Capable Repeater supports extensive remote diagnostic features while minimizing power consumption. Workforce safety and operational efficiencies are enhanced through status messaging and embedded location data, as well as remote network management and monitoring.

Exceptional receiver performance
Compact network solution for easy transport and installation
Seamlessly integrates with Tait 9300 series Base Stations
IP-based connectivity with full adherence to DMR Tier 2 and Tier 3 standards
Operational efficiencies and worker safety enhanced through remote network management and status messaging

Systems Supported

DMR Tier 2, DMR Tier 3

Frequency Range

VHF/UHF: 148-174 MHz, 400-470 MHz

Dimensions

1.7 x 19 x 15.8 in (44 x 483 x 400 mm)

Weight

14.8 lb (6.7 kg)

TB7300 Spec Sheet

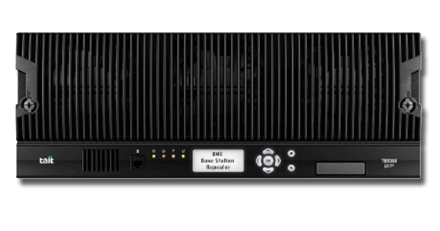

TB9300

Smooth Migration, Built Tait Tough

The Tait TB9300 is an IP connected, digital base station for DMR Tier 2 (conventional) or Tier 3 (trunked) networks. Their functionality allows for flexible network designs and easy migration paths from analog networks to DMR.

These spectrally efficient base stations provide a 6.25kHz equivalent operation using two TDMA channels in one 12.5kHz channel, giving greater capacity now and a future path for expansion.

Operates in Analog Conventional, MPT-1327, DMR Tier 2 and DMR Tier 3 modes for easy migration
Exceptional receiver performance for extended range and interference resistance
Remote network management with alarm monitoring, diagnostics and software downloads
Secure HTTPS web server and SNMPv3 support with access-level control
Rated for continuous full output power and built to MIL-STD-810G

Systems Supported

Analog Conventional, MPT 1327, DMR Tier 2, DMR Tier 3

Frequency Range

VHF: 136-225 MHz | UHF: 330-520 MHz | 700/800: 757-870 MHz | 900: 896-941 MHz

Dimensions

7 x 19 x 15.8 in (177 x 483 x 400 mm)

Weight

Single 50 W: 47.4 lb (21.5 kg)
Single 100 W: 50.3 lb (22.8 kg)
Dual 50 W: 63.1 lb (28.6 kg)

TB9300 Spec Sheet

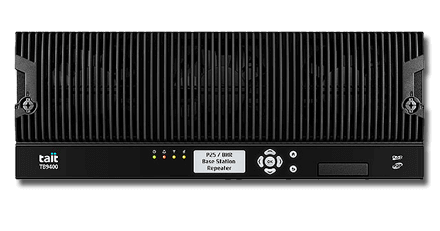

TB9400

Flexible, Efficient P25 and Analog Networking

The Tait TB9400 Base Station is a reliable, scalable open-standards-based P25 migration solution. This interoperable base station/repeater has multimode functionality providing analog simulcast over IP, P25 Phase 1, and P25 Phase 2.

With a modular design as well as remote management and monitoring options, the TB9400 is an efficient, cost-effective solution that can adapt and grow with an organization's P25 radio system. The integrated software voter and simulcast controller reduces the need for additional hardware and saves rack space.

Operation in VHF, UHF and 700/800 MHz frequency bands
Ensures a smooth migration from Analog to Digital with multimode functionality
Scalable, open-standard P25 migration solution ensures interoperability with other agencies
Secure, remote management and monitoring options
Designed and tested for resilience and reliability to mitigate network outages

Systems Supported

P25 Phase 1, P25 Phase 2, Analog Simulcast over IP

Frequency Range

VHF: 136-174 MHz | UHF: 400-440, 440-480 MHz | 700/800: 762-776, 850-870 MHz

Dimensions

19 x 7 x 15.8 in (483 x 177 x 400 mm)

Weight

Single 50 W: 43.2 lb (19.6 kg)
Single 100 W: 46.5 lb (21.1 kg)
Dual 50 W: 57.7 lb (24.8 kg)

TB9400 Spec Sheet

TB9100

Modular P25 Architecture with IP Connectivity

Design of this Base Station, powered by Tait, includes industry-standard interfaces and modular expansion options for a cost-effective solution. The TB9100 is fully P25 compliant and can be configured as a repeater or as a base station in a digital P25, analog FM or mixed-mode radio network.

IP connectivity delivers advanced capabilities for remote diagnostics, performance analysis and alarm and alert configuration.

Ideal solution for conventional, trunked and simulcast mission-critical networks
Intuitive software programming for fast customization, configuration and upgrades
Flexible design adapts to growing user needs
Advanced capacity and interoperability with adherence to P25 standards
IP connectivity for enhanced remote management and monitoring capabilities

Systems Supported

P25 Conventional/Trunked, Analog FM, Mixed-Mode

Frequency Range

VHF: 136-174 MHz | UHF: 380-520 MHz | 700/800: 762-870 MHz

Dimensions

Subrack: 7 x 19 x 15.2 in (177.8 x 482.6 x 386 mm)

Weight

Single 5/50 W: 47.0 lb (21.5 kg)
Dual 100 W: 50.2 lb (22.8 kg)

TB9100 Spec Sheet

TB9100 Transportable

Intelligent and Reliable

The rugged P25 transportable base station/repeater is designed for mission-critical use in disasters, tactical missions and at crime scenes to ensure worker and community safety and the security of communications and tactical operations.

Extend your current P25 wide area coverage or set up a dedicated communications network on-site in minutes with the Tait P25 transportable repeater.

Smart AC/DC switching (powered by external battery or mains, 18-30V) ensures continuity of service
Operates in VHF, UHF and 700/800MHz bands with dual-mode interoperability between analog and P25 digital (also available as analog FM TB8100)
Remote monitoring via built-in Task Manager, including alert configuration and RF performance monitoring
Rugged, waterproof Pelican case with a reinforced aluminium chassis, available in multiple colors

Systems Supported

P25 Digital, Analog FM (dual-mode)

Frequency Range

VHF: 136-174 MHz | UHF: 380-520 MHz | 700/800: 762-870 MHz

Dimensions

7.6 x 15.4 x 20.3 in (192 x 392 x 515 mm)

Weight

Less than 44 lb (20 kg)

TB9100 Transportable Repeater Spec Sheet

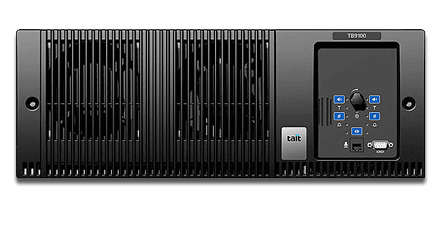

TB8100

High Performance, Built for the Harshest Environments

The TB8100 is a high performance base station/repeater designed to cope with the harshest of operational environments. Featuring remote monitoring and configuration as well as a powerful local control application, it is available in 5, 50 and 100W configurations across a range of popular frequency bands.

Remote monitoring of 150+ parameters via TB8100 Service Kit software
Central alarm reporting minimizes on-site maintenance time and costs
255 channels with up to 16 CTCSS and DCS sub-audible tones per channel
Rated for continuous full-power operation up to 15,000 ft and 140°F (60°C)
Transportable option packaged in a ruggedized Pelican case, available in multiple colors

Systems Supported

Analog Conventional

Frequency Range

VHF: 136-225 MHz | UHF: 380-520 MHz | 700/800: 762-870 MHz | 900: 896-941 MHz

Dimensions

19 x 15 x 7 in (480 x 390 x 180 mm), 4U Rack Space

Weight

Single 5/50 W: 45.0 lb (21.0 kg)
Single 100 W: 47.0 lb (22.0 kg)
Dual 5/50 W: 61.0 lb (28.0 kg)

TB8100 Spec Sheet
